Equipment introduction and use

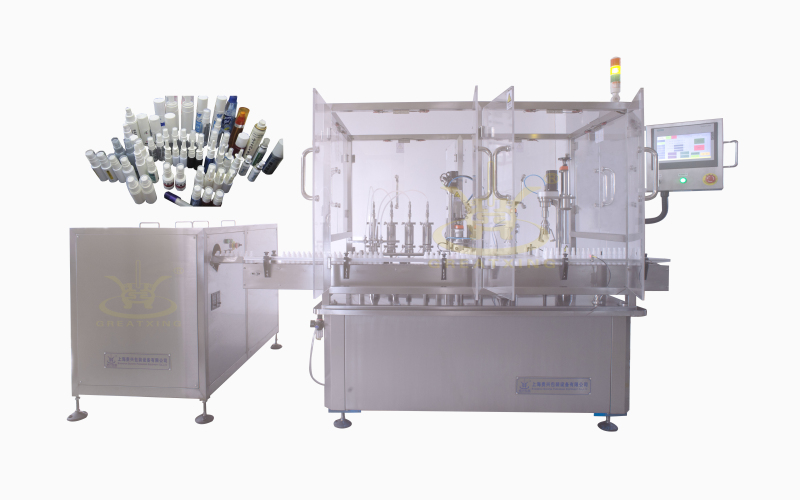

This line by unscramble bottle, 4 head filling, screw cap, can match shall be applicable to the labeling machine, mainly used in pharmaceutical, chemical, stable and reliable equipment, leading technology, unscramble bottle machine with card bottle protection function, effectively guarantee the production safety, can be shaped bottle. Function by PLC programmable controller for the automatic control. Production location link all have optical testing, which can realize the pipe does not reach the designated position is not turning, no tube no filling, no tube no stamp, and other functions. Filling machine has reasonable design, simple operation, high precision, high degree of automation, high production efficiency, stable performance of long period running, maintenance is convenient wait for a characteristic, the equipment technology can reach the advanced level of the domestic packaging industry. Equipment is mainly made of high-quality stainless steel SUS304 material contact parts are made of high-quality stainless steel SUS316L comply with national GMP production standards of pharmaceutical packaging equipment.
The characteristics of
1. Painted surface adopts SUS304 stainless steel material, contact material parts adopt SUS316L high quality stainless steel, in line with the GMP requirements, filling piston pumps, peristaltic pump, ceramic pump filling choice;
2. U can be applied to a variety of specifications of production, easy to change mould, reducing cost of waste;
3. Taken the production speed is adjustable, filling without drops, can realize no bottle no filling, not cover;
4. U the whole production line operation chain control, can be stand-alone operation control, more humanized and convenient production.
Technical parameters
| The serial number | Name | parameter |
1 | Applicable specifications | 10~100ML |
| 2 | Production capacity | 30 ~ 60 bottles/min |
| 3 | Filling accuracy | ≤±1% |
| 4 | Percent of pass | ≥99.5% |
| 5 | Electrical source | 220V 50Hz |
| 6 | Gas source | 0.5-0.8MPan |
| 7 | Work rate | 3kw |
| 8 | Machine net weight | ≈1200kg |
| 9 | Overall dimensions | L3200xW1500xH1850mm |
